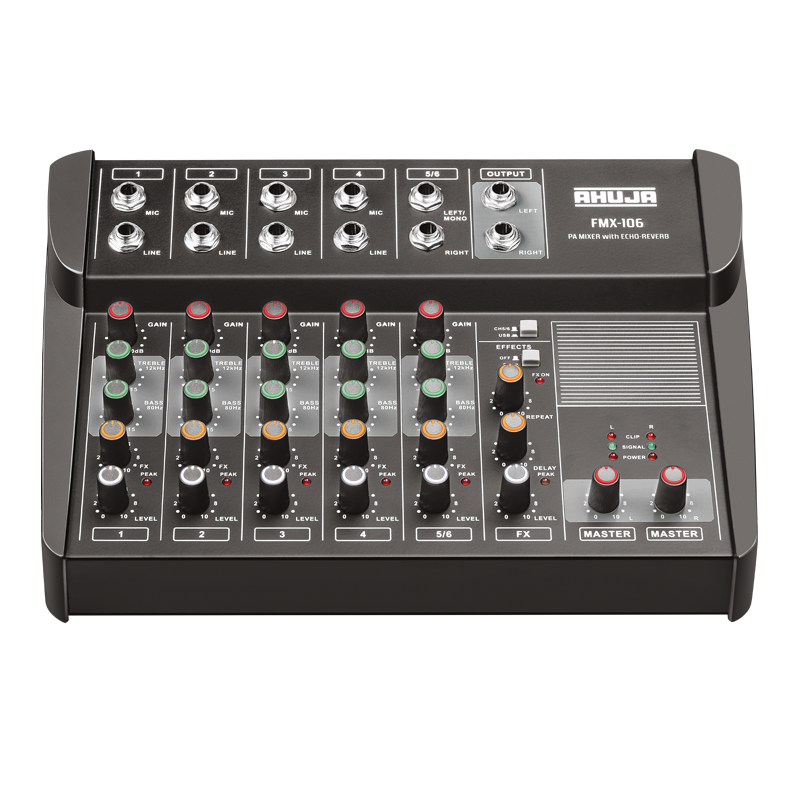

FMX-106

6 Channel

AC Operation

• Compact and reliable professional PA Mixer which is aesthetically superior and easily portable.
• Upto four low impedance microphones and Line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4”) stereo jack socket.
• Each channel has a GAIN control for optimum adjustment of the MIC & LINE input sensitivities.
• Active BASS & TREBLE controls in each channel for desired equalisation of the input signal.
• Separate FX (effects) level control for each input channel.
• Stereo input channel is provided with a GAIN control, 2 band EQ, FX & LEVEL Controls.
• Built-in digital effects processor with DELAY, REPEAT and LEVEL controls.
• Line level LEFT & RIGHT outputs through 6.3 mm (1/4”) stereo jack sockets.
• Individual SIGNAL & CLIP LEDs for optimum setting of signal levels.
