AMA-240DP

AMA-240DP

325 WATTS

AC & 24V DC Operation

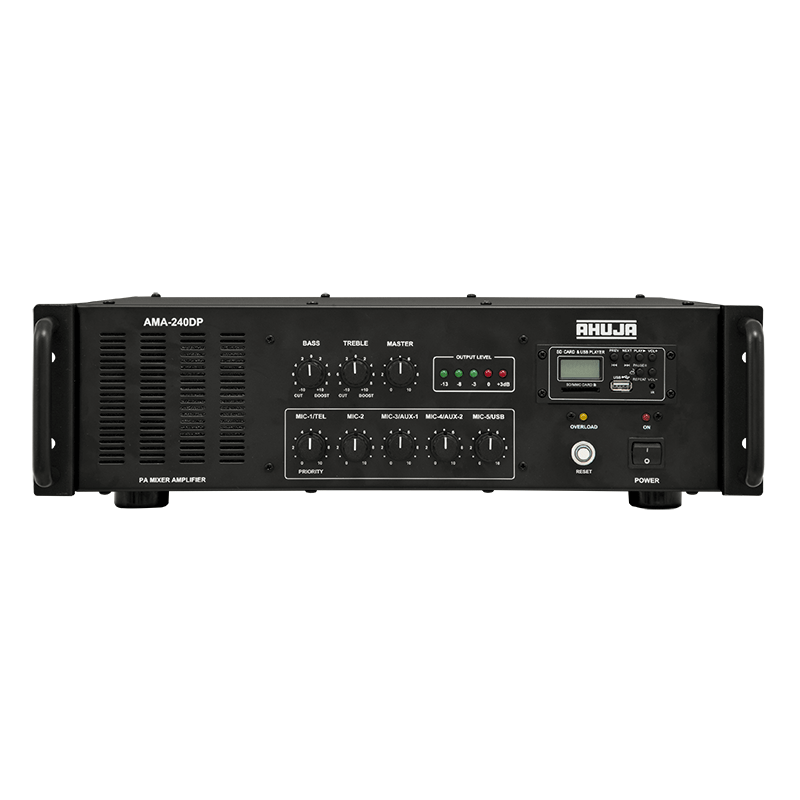

High quality mixer amplifier with built-in MP3 player in standard 19” rack mountable chassis.
3 Unbalanced Mic inputs, 2 balanced Mic inputs, 2 Aux inputs,1 Telephone & 1 balanced line Input.
Voice Operated Priority in Mic-1 and Telephone Inputs.
Preamplifier Output (unbal.) and Line Output (bal.) for recording & connecting a booster amplifier.
Ground lift switch provided at rear panel which helps reducing the hum that occurs due to multiple ground loops in the installations.
Resettable circuit breaker for protection against overload and short circuit. Instant transfer to DC power (Car Battery) if AC power fails.

Additional information

Power Output	415W Max., 325W RMS at 10% THD, 240W RMS at 1% THD
Output Regulation	≤ 2 dB, no load to full load at 1kHz
Input Channels	3 × Mic 2.5mV/4.7kΩ (unbal.), 2 × Mic 2.0mV/2kΩ (bal.), 1 × Line 1V/50kΩ (Bal.), 2 × Aux 100mV/470kΩ, 1 × Telephone 150mV/10kΩ
Frequency Response	50-15,000Hz ±3dB
Signal to Noise Ratio	60dB
Tone Controls	Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output	Preamp 200mV/600Ω (Unbal.), Line 1V/1kΩ (Bal.), Monitor 5V/8Ω
Speaker Output	4Ω, 8Ω, 70V & 100V
Digital Player	MP3 Player with USB, SD / MMC Card Reader & Bluetooth
Power Supply	AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption	AC: 600VA DC: 7A
Dimensions	W485 × H142 × D405 mm
Weight	21.00kg
